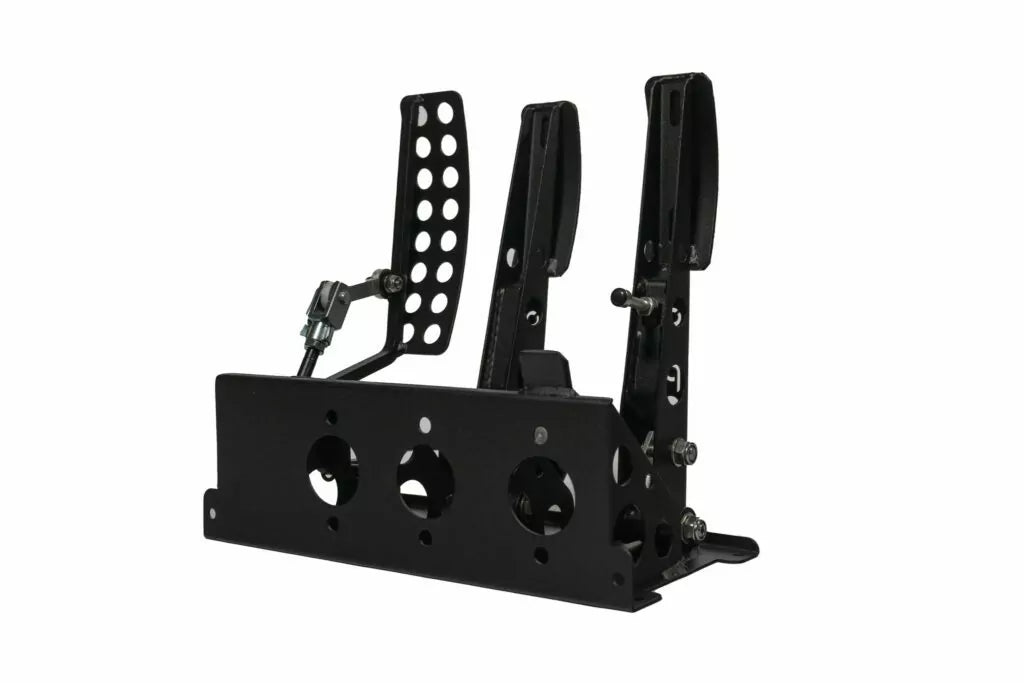

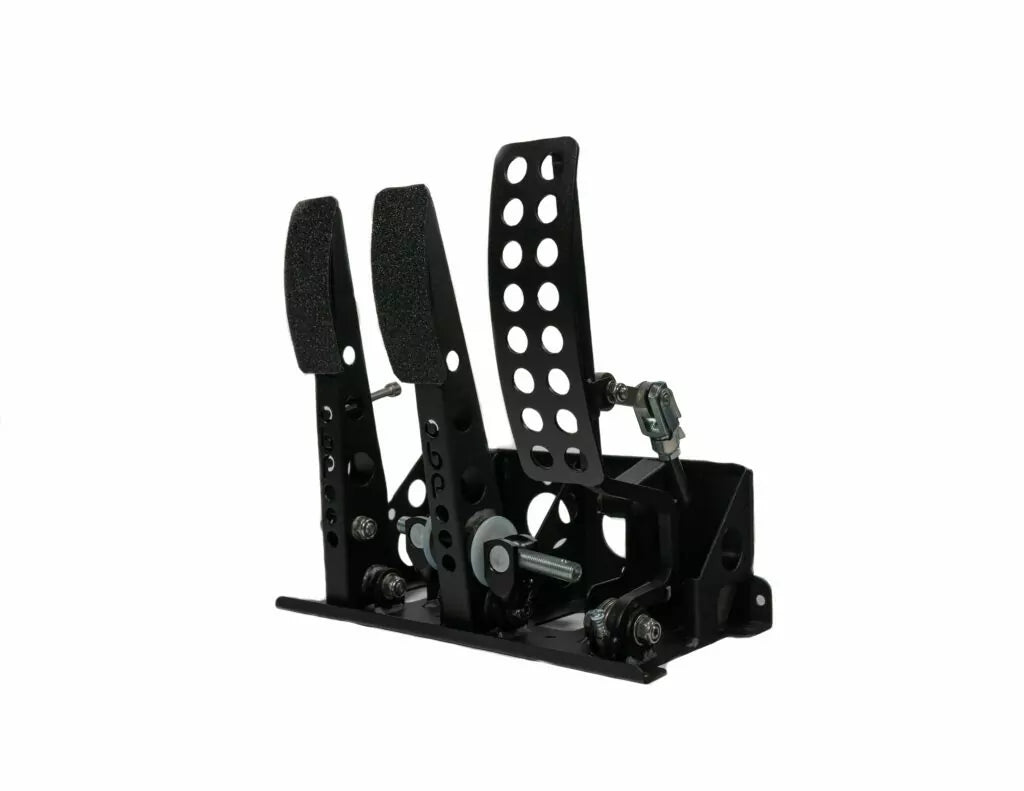

OBP Victory+ Floor Mounted Bulkhead Fit 3 Pedal System

The Victory Range.  The Clubman Pedal System.

Part Number : OBPVIC01

Our lightweight range dual brake master cylinder bias controlled pedal boxes have been designed to offer the driver the highest level of efficiency in this critical area. The Victory+ pedal box product range is our specifically chosen pedal boxes suited for the clubman level of motorsport.

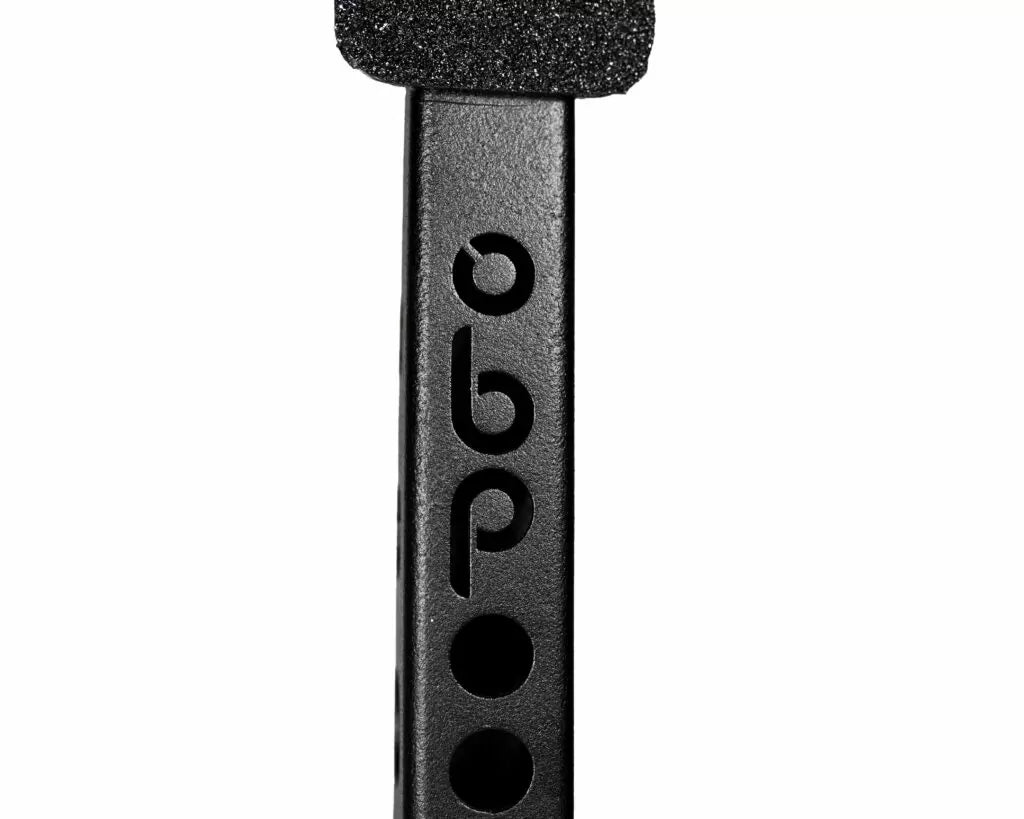

The Reinforced Mild Steel Pedals are fabricated with a strengthening plate on the rear to enable a strong arm for your pedal force. The pedals are equipped with adjustable pedal pads that can be increased in height to adjust your pedal ratio whilst still running on smooth high quality oil impregnated spherical bearings. The clutch pedal also includes a stop on the rear.

The base box frame has been developed out of 2.5mm Mild Steel to provide an improved robustness and strength which is designed to mount up against the bulkhead to provide further support. On the rear of the frame, it has 3 x mounting points for your brake master cylinders (will fit the majority of master cylinders on the market).

The Accelerator Pedal is equipped with two throttle stops that can be adjusted to suit your pedal throw and also a sensitive return spring. On the rear of the pedal, it has the throttle cable linkage installed as standard although it is also Drive By Wire (DBW) Compatible. Simply remove the linkage and replace with a Linear Potentiometer.

• Mild Steel Pedals & Cradle Construction coated in a black textured finish
• Folded and Reinforced Pedals
• Ergonomic Design
• Adjustable Accelerator Return
• Adjustable Clutch Stop

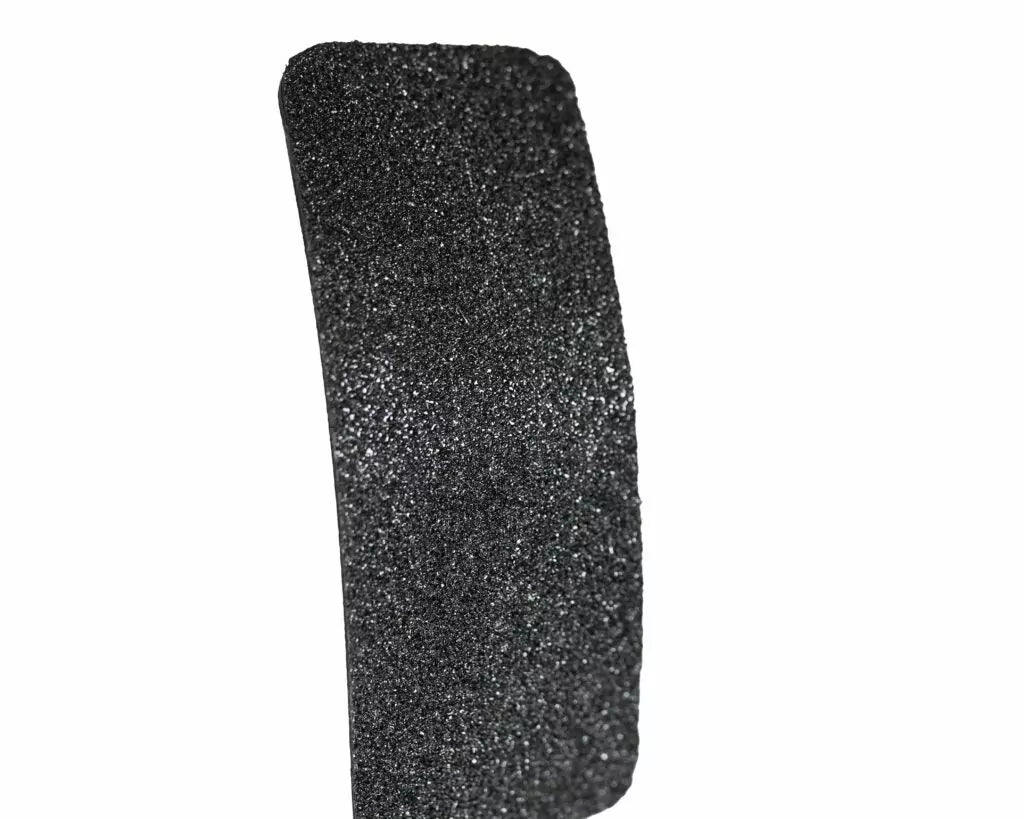

• Textured Grip Pads on Brake and Clutch
• Oil-impregnated bronze bearing at pedal pivots
• 2 years warranty
• Includes obp Motorsport Bias Bar

Product Information:

• Fitment: Bulkhead Fit
• Pedal Ratio: 5.1
• Weight: 2.8kg
