OBP Pro-Race V2 Floor Mounted Bulkhead Fit 3 Pedal System

The Pro-Race V2 . The Original Pedal System.

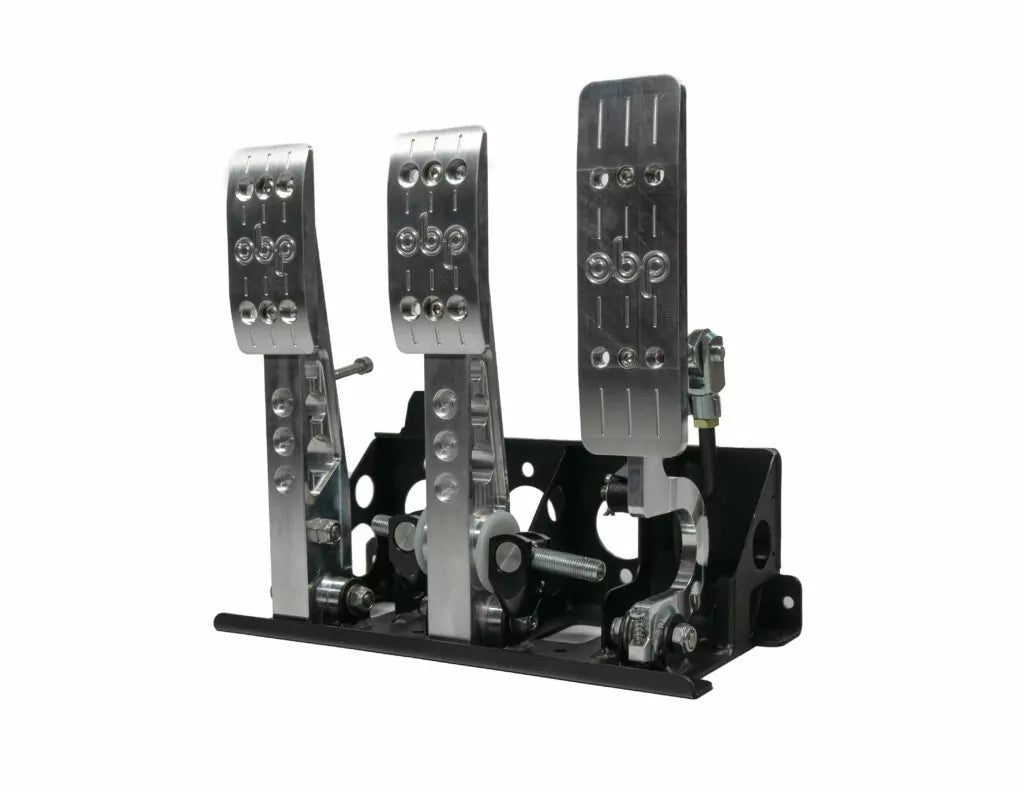

Silver Pedals : OBP0002PR

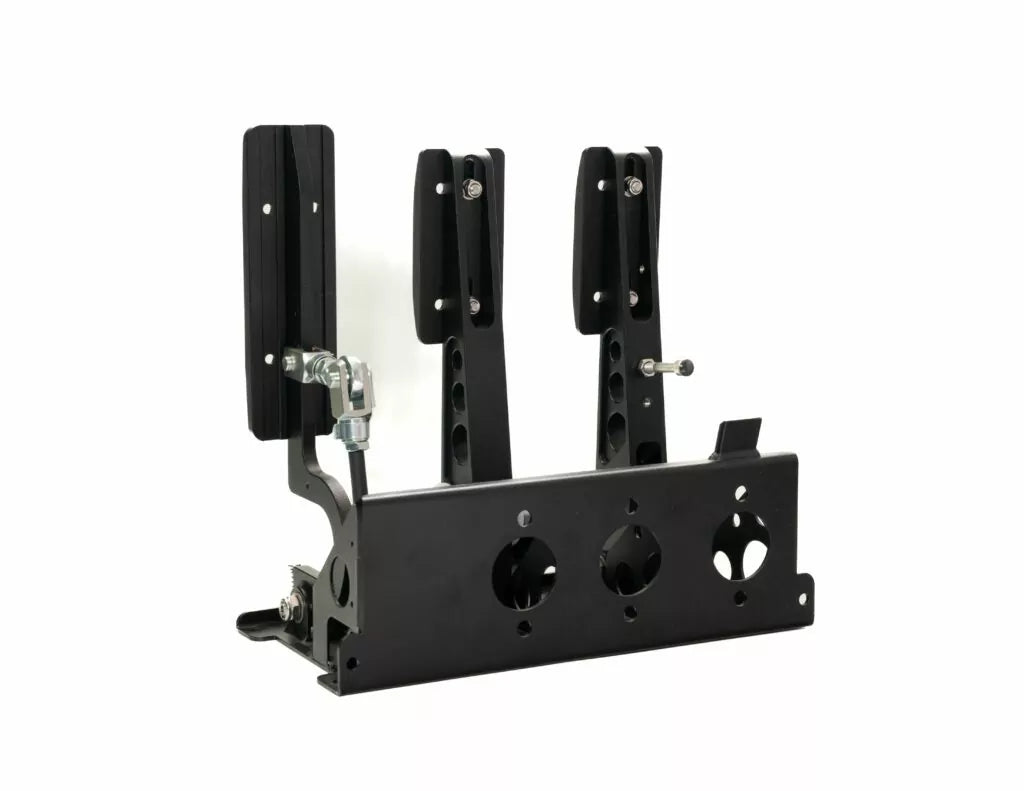

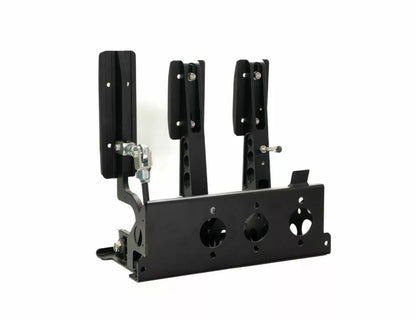

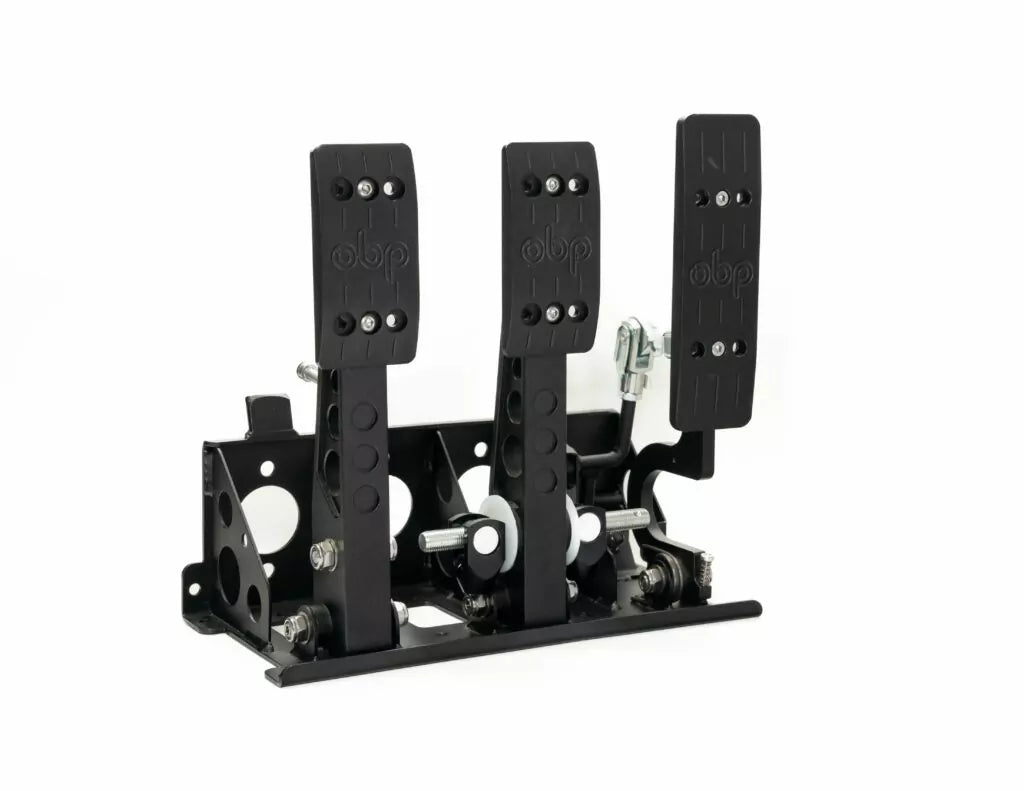

Black Pedals : OBP0002PR-B

Our lightweight range dual brake master cylinder bias controlled pedal boxes have been designed to offer the driver the highest level of efficiency in this critical area. The CNC Machined Pedals, together with low friction and high-quality oil impregnated spherical bearings set new standards in pedal box design. The pedal pads are also CNC Machined Billet aluminium which can be adjusted in multiple positions to allow the driver to have different pedal ratio options and also comfort.

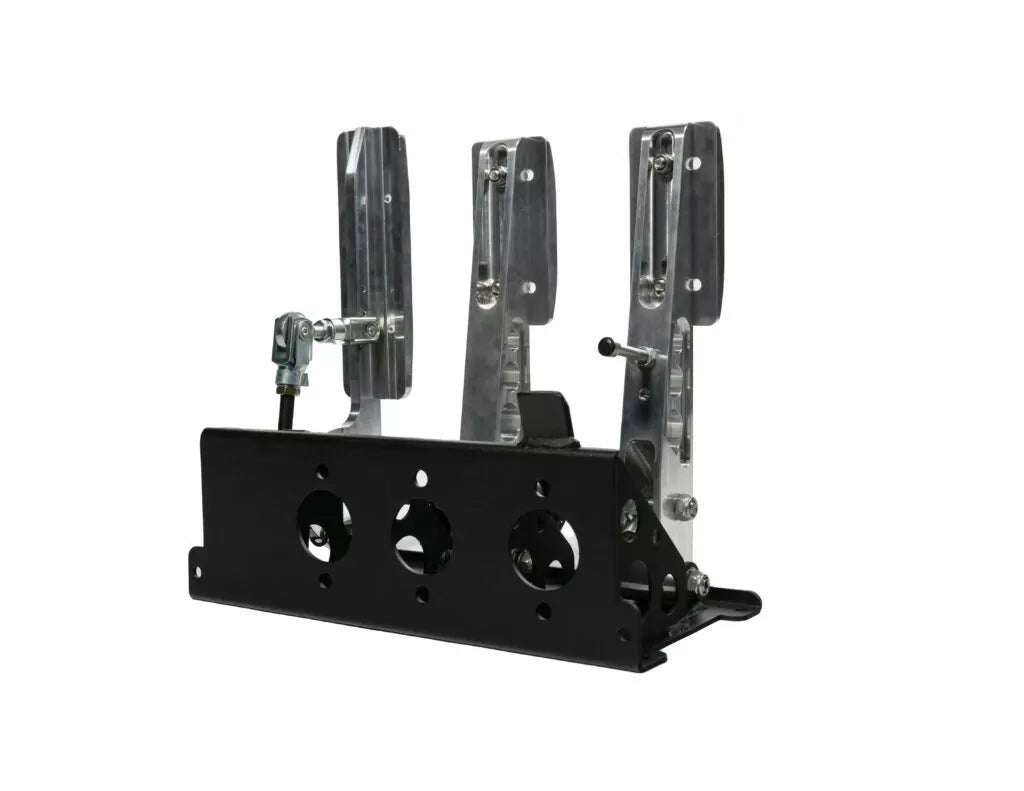

The base box frame has been developed out of 2.5mm Mild Steel to provide an improved robustness and strength which is designed to mount up against the bulkhead to provide further support. On the rear of the frame, it has 3 x mounting points for your brake master cylinders (will fit the majority of master cylinders on the market).

The Accelerator Pedal is equipped with two throttle stops that can be adjusted to suit your pedal throw and also a sensitive return spring. On the rear of the pedal, it has the throttle cable linkage installed as standard although it is also Drive By Wire (DBW) Compatible. Simply remove the linkage and replace with a Linear Potentiometer.

Product Information:

• Fitment: Bulkhead Fit
• Pedal Ratio: 4.9:1 / 5.24:1
• Weight: 3.3kg
• Cradle: 2.5mm Powdercoated Black
• DBW Compatible
• Bias Bar Included

Fitment drawing and Pedal box install guide can be found in the ‘Product Specification’ Section
